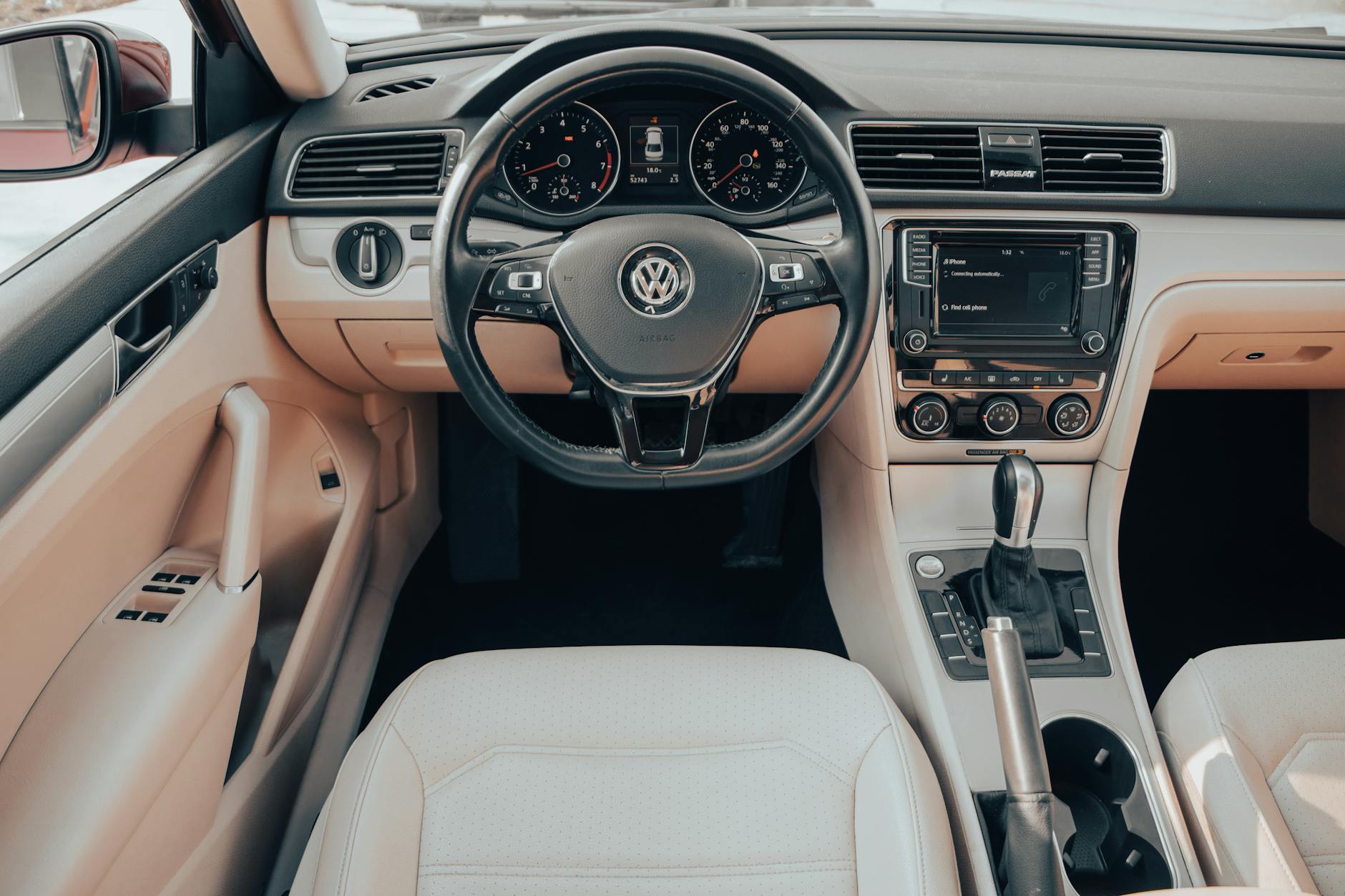

VW Passat B7 Steering Lock Fault

1. Introduction

A steering lock fault on a VW Passat B7 (2010–2014) can be unsettling: the car may refuse to start, display a warning, or behave intermittently—often at the worst possible time. The Passat B7 uses an electronic steering column lock (ESCL/ELV) rather than a traditional purely mechanical lock, integrating the steering lock with the ignition authorization system (immobiliser) and other modules. When the system doesn’t confirm “lock released,” the car may block ignition-on or starting to protect against theft and unintended movement.
Recommended Tool: Professional OBD2 Scanner
Recommended Tool: Portable Jump Starter

For everyday owners, the key point is this: a steering lock fault is usually electrical, module-related, or communication-related, and it can often be diagnosed without stripping half the car. If you own other VW Group cars (Audi, Skoda, SEAT), the principles are similar, and the diagnostic approach will feel familiar—especially if you’ve ever seen faults tied to the gateway, immobiliser, or low voltage. Tools like ODIS (dealer-level) or high-quality VAG scanners can quickly narrow down whether it’s the lock unit, wiring, a weak battery, or a related control module.
Recommended Tool: Professional OBD2 Scanner

2. Causes

Several issues can trigger a steering lock fault on the Passat B7. Common causes include:

• Weak or failing battery / low system voltage
  • The ESCL needs stable voltage. A tired battery or voltage dips during cranking can cause the lock to misreport its status.
• Faulty steering column lock module (ESCL/ELV)
  • Internal motor wear, position sensor issues, or electronics failure can prevent reliable lock/unlock confirmation.
• Ignition switch / KESSY-related issues (where equipped)
  • Some trims use keyless systems; faults in start authorization can look like a steering lock problem.
• Wiring, connector, or ground issues
  • High resistance, corrosion, or a loose connector at the column area can cause intermittent faults.
• CAN bus communication problems
  • Gateway or network faults can prevent modules from agreeing on steering lock status.
• Mechanical load on the steering
  • Parking with the wheels hard against a kerb can bind the lock mechanism and make it struggle to release.

3. Symptoms

A steering lock fault doesn’t always present the same way. Owners commonly report:

• “Steering lock faulty” / steering column lock warning on the dash
• No crank / no start, sometimes with ignition refusing to turn on fully
• Key won’t turn (mechanical key cars) or Start/Stop button doesn’t respond (if equipped)
• Intermittent starting issues, often worse in cold weather
• Clicking noises from the steering column area when trying to start
• Multiple random electrical warnings after a low-voltage event (battery recently flat, jump-start, etc.)

4. How to diagnose

A structured diagnosis saves money because steering lock parts can be expensive, and some faults are caused by basic electrical issues.

Step 1: Check the battery and charging system

• Measure battery voltage:
  • 12.6V (healthy, rested) is ideal; 12.2V is marginal; below 12.0V often causes module faults.
• If possible, load-test the battery.
• Check alternator charging: typically 13.8–14.6V with the engine running.

Low voltage is a frequent trigger, especially on cars with stop-start or older batteries.

Step 2: Scan for fault codes with a proper tool

Using ODIS (best), VCDS, or a high-end VAG scanner, scan:

• Steering column electronics / steering lock module (where listed)
• BCM / onboard power supply module
• Immobiliser / instrument cluster (depending on configuration)
• CAN gateway

Look for faults indicating:

• “Steering lock: implausible signal”
• “No communication with steering column lock”
• “Terminal 15 / terminal 30 undervoltage”
• “Start authorization” faults (especially on KESSY cars)

Step 3: Observe live data / measuring blocks

In ODIS, check status values such as:

• Steering lock: Locked/Unlocked
• Start enable: Yes/No
• Voltage supply at the module If the system repeatedly fails to confirm “Unlocked,” that points to the ESCL unit or its power/ground.

Step 4: Rule out mechanical binding

With the car safely parked:

• Gently turn the steering wheel left/right while attempting ignition-on/start. If it suddenly works, the mechanism may be binding (often still paired with an underlying weak battery or a tired lock motor).

Step 5: Inspect connections (basic visual check)

If you’re comfortable:

• Check for signs of moisture, disturbed trim, or loose connectors around the steering column area. If not, leave trim removal to a workshop—airbag components may be nearby.

5. How to fix

The correct fix depends on what diagnosis shows.

If low voltage is the root cause

• Replace the battery with the correct specification (often AGM on higher spec cars).
• Clear fault codes and recheck. On VW Group cars, battery registration/adaptation may be required depending on equipment; a workshop with ODIS can do this properly.

If the ESCL/steering column lock is failing

• Replace the steering column lock module (or steering column electronics, depending on parts catalog).
• Coding/adaptation is often required so the immobiliser recognizes the component. This is where dealer-level tools (ODIS) matter; incorrect coding can lead to a no-start condition.

If wiring/ground is the culprit

• Repair corroded pins, damaged wiring, or poor ground points.
• Confirm stable voltage at the ESCL during ignition-on. This is commonly cheaper than module replacement, but it takes time to diagnose properly.

If CAN communication faults are present

• Address the underlying network issue (gateway faults, water ingress in plenum area, damaged harness sections).
• After repairs, re-scan to confirm the steering lock module is online and reporting correctly.

6. Repair costs

Costs vary by country and workshop rates, but realistic Passat B7 ranges (parts + labor) are:

• Battery replacement (incl. coding/adaptation where needed): €180–€420
  • AGM batteries and stop-start systems push costs higher.
• Steering column lock module replacement + coding: €450–€1,100
  • Parts pricing varies widely; dealer pricing is typically higher than independent specialists.
• Wiring/connector repair: €120–€450
  • Depends on whether it’s a simple repair or a time-consuming intermittent fault.
• CAN/gateway-related diagnosis and repair: €200–€900
  • Water ingress or harness faults can add significant labor.

If the car is stuck and needs recovery, add €80–€200 depending on distance and local rates.

7. Prevention tips

You can reduce the likelihood of steering lock issues with a few habits:

• Keep the battery healthy
  • Replace aging batteries proactively (often 5–7 years is typical).
  • Avoid repeated short trips that never fully recharge the battery.
• Don’t park with the steering hard against a stop
  • Straighten the wheels slightly after parking to reduce binding load.
• Avoid jump-starting unless necessary
  • If you must, follow correct procedures to prevent voltage spikes.
• Fix water leaks early
  • VW Group cars can suffer from water ingress issues that lead to network/module problems.
• Scan after electrical events
  • After a flat battery, do a full scan and clear undervoltage faults to see what returns.

8. When to see a mechanic

Seek professional help if:

• The car has a repeated no-start condition or becomes immobilised.
• Fault codes indicate component protection/coding/adaptation is required.
• You see CAN communication faults across multiple modules.
• The issue is intermittent and you can’t reliably reproduce it—specialists can monitor live data and voltage drop properly.
• You’re not comfortable around steering column trim or anything near airbags.

A VW Group specialist with ODIS is ideal for steering lock adaptations and immobiliser-related tasks, and may be quicker (and cheaper) than trial-and-error parts replacement.

9. Frequently Asked Questions

Frequently Asked Questions

Can a weak battery really cause a steering lock fault on a Passat B7?

Yes. The steering column lock and immobiliser systems are sensitive to voltage drops, especially during start attempts. A borderline battery can create intermittent faults that look like module failure.

Will the car start if the steering lock module is failing?

Sometimes it will, sometimes it won’t. Early failure often shows as intermittent warnings and occasional no-start events, then progresses to a permanent start block when the module can’t confirm “unlocked.”

Do I need ODIS to fix a steering lock fault?

Not always, but it helps. If the fix is battery-related or a simple wiring issue, basic tools may be enough; if the steering lock module needs replacement or adaptation, ODIS (or equivalent dealer-level capability) is often required.

Is it safe to keep driving with an intermittent steering lock warning?

It may be drivable, but it’s risky because the car can refuse to start later. Address it early to avoid being stranded and to prevent unnecessary towing costs.

How long does steering lock replacement usually take?

Typically 1.5–3.5 hours in a well-equipped workshop, depending on trim removal, access, and coding steps. Intermittent wiring faults can take longer because diagnosis time is unpredictable.
